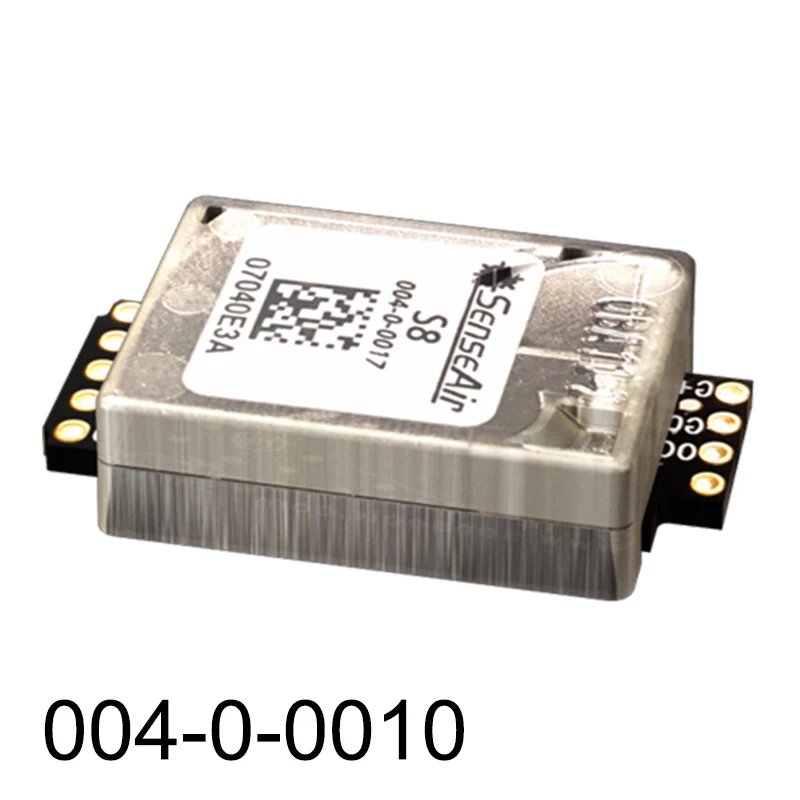

004-0-0010 Senseair Commercial CO2 Sensor
The Sensesair S8 Commercial CO2 Sensor (004-0-0010) is a 0-2,000 ppm sensor designed for simple integration into indoor air products. It can be used in a wide range of applications such as in ventilation control, to improve energy savings, and to ensure a good indoor climate.
The Senseair S8 Commercial CO2 Sensor module is especially designed for high volume production, with full traceability by sensor serial number on all manufacturing processes and key components. Every sensor is individually calibrated and is provided with UART digital interface. The sensor has an estimated life time of more than 15 years.
Features
- Miniature Size
- Compliant with ANSI/ASHRAE Standard 62.1-2022
- Compliant with RESET grad B
- Compliant with WELL Building StandardĀ® (WELL v2ā¢)
- Individually Calibrated
- Maintenance-Free
- Long Term Stability
- Low Power Consumption
Models
- Senseair S8 Commercial CO2 Sensor (004-0-0010) - designed for high volume production with full traceability.
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLabĀ® software to measure and graph carbon dioxide or to configure the sensor or for data logging or for OEM batch testing/configuration. Order sensor here, then order the devkit here.
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: diffusion
- Measurement Range: 400 to 2,000 ppm
- CO2 Accuracy: Ā± 30 ppm Ā± 3% of reading
- Communication Options: UART Modbus
- Alarm Output (open collector): Open >1,000 ppm, Closed <800 ppm
- PWM Output: 0 to 100 % duty cycle for 0 to 2,000 ppm
- Operating Temperature: 0 to 50Ā°C
- Dimensions: 8.5 x 33.5 x 20 mm
- Sensor Life Expectancy: > 15 years
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check on startup
Electrical / Mechanical
- Power Supply: 4.5 V to 5.25 VDC
- Max Current: 300 mA
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Accessories
Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
