030-7-0007 K30 10% CO2 Sensor
The K30 10% (100,000 ppm) CO2 sensor (formerly known as SE-0118) is a high performance CO2 sensor used commonly in scientific, medical, and biological applications. It is an accurate, low-cost solution for OEMs products like CO2 safety alarms or leak detectors.
Features
- Built on tested K30 Sensor platform
- Simple to install, pre-calibrated and ready-to-use
- Proven reliability, low cost
- Flexible analog and digital outputs
Models
- 030-7-0007 - K30 10% CO2 Sensor - For integration into high-volume OEM products.
- 030-7-0007-C - K30 10% CO2 Sensor with Custom Outputs - Customize analog or digital outputs for your application. After ordering, email or fax the Custom Outputs PDF form under the Documents tab and we will custom-configure your sensor’s settings. If the form is not received, your sensor will be delivered with the default specifications.

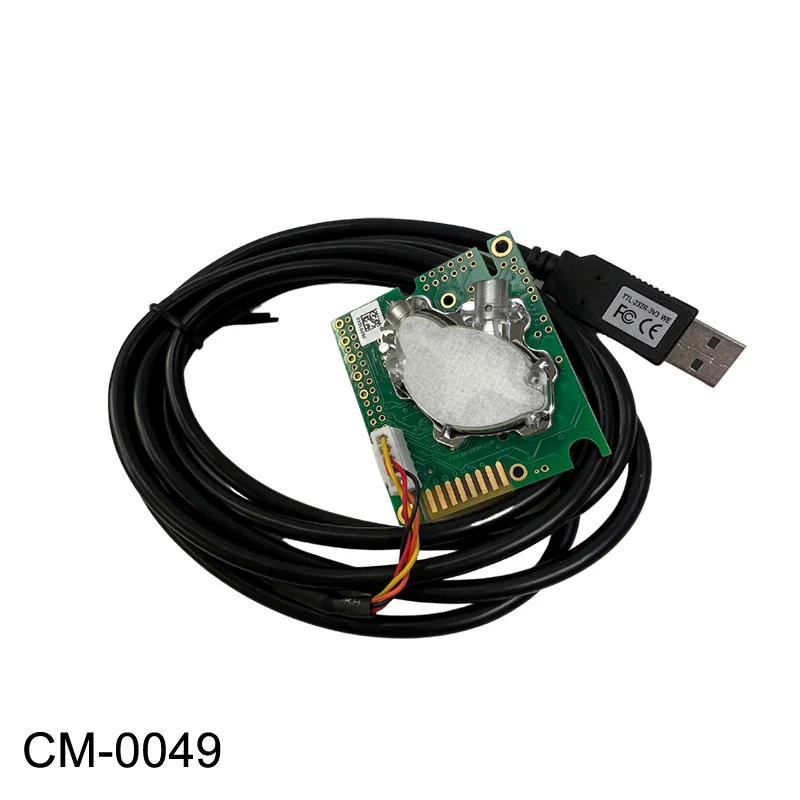

- CM-0049 - K30 CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide in real time or for data logging.
- CM-200 - Sensor Development Kit - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.
We recommend that all first-time users purchase either the CM-0049 or CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: Diffusion
- Measurement Range: 0-100,000 ppm (0-10%)
- Rate of Measurement: 0.5Hz (every 2 seconds)
- Response Time Diffusion: 20 seconds
- Accuracy: ±30ppm ±3% of reading
- Warm-up Time: < 1 minute
- Available Outputs: 2 analog, 2 digital
- Scalable Analog voltage outputs
- Analog output pre-set to 3% - up to 10% available upon request
- Each digital output has threshold and hysteresis
- Programmable Range: 0-100,000 ppm (custom configuration available)
- Communication Options: UART or I2C
- Sensor Life Expectancy: >15 years
Conformance with Standards
- Emission: EN61000-6-3:2001
- Immunity: EN61000-6-2:2001
- RoHS directive 2002/95/EG
Electrical / Mechanical
- Dimensions: 51 × 57 × 14 mm (Length x Width x approximate Height)
- Power Input: 4.5-14 VDC, stabilized to within 10% (external protection circuits required)
- Max Current: 300 mA
- Current Consumption: 40 mA average, < 300mA peak
- Sampling Method: Diffusion (sampling kit optional)
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Devkit Quick Start Guide (pdf)
Senseair ISO Certification (pdf)
I2C & Modbus Communication Manuals (zip)
Sensor Calibration Procedure (pdf)
Labview Examples for SenseAir K-30 (zip)
Web Application Using PHP and K30 DevKit (pdf)
Raspberry Pi UART Instructions (pdf)
Raspberry Pi UART Sample Code (zip)
Arduino UART Instructions (pdf)
Arduino UART Sample Code (zip)
Arduino I2C Instructions (pdf)
Accessories
- Gas Sensor Development Kit - designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
- Tube Cap Adapter changes the sensor from reading CO2 in the air to a sample draw sensor. Use with a pump, tubing and filters to read CO2 levels in enclosed containers.
- Sample Draw Pump Kit includes all the components you need with a sample draw sensor to create a closed CO2 measurement system.
- Probe Enclosure. Includes hydrophobic filters, protects the sensor when used in hostile environments.
