070-8-0001 tSense Touch Screen CO2 + RH/T Transmitter

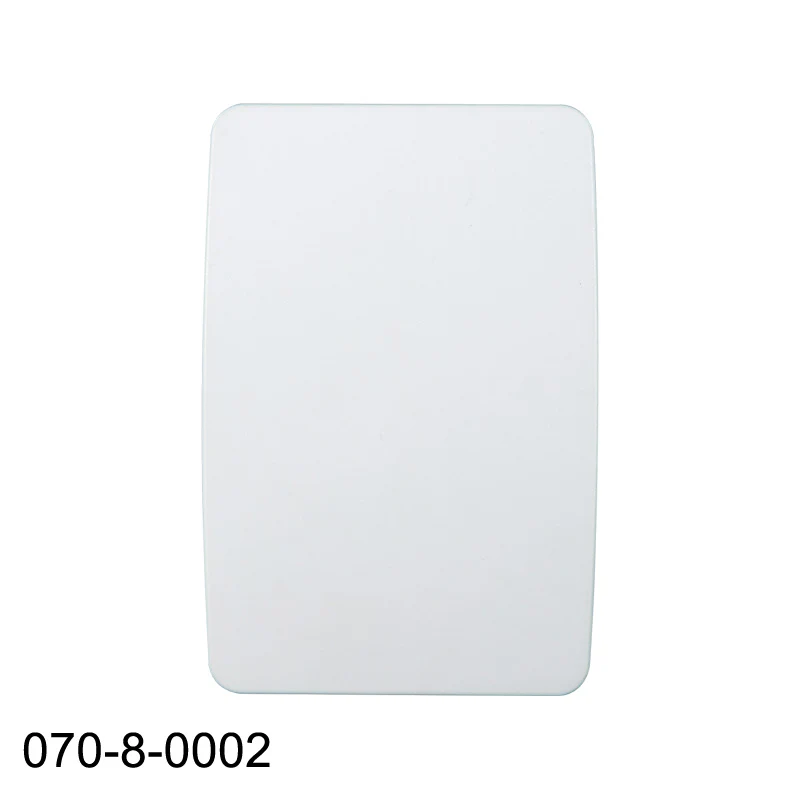

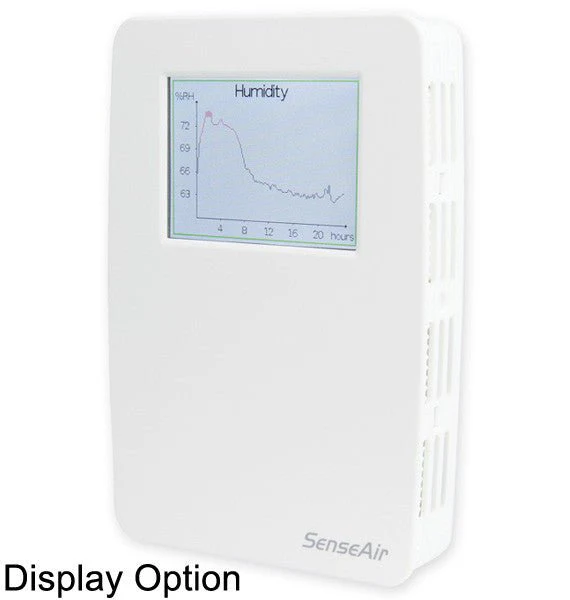

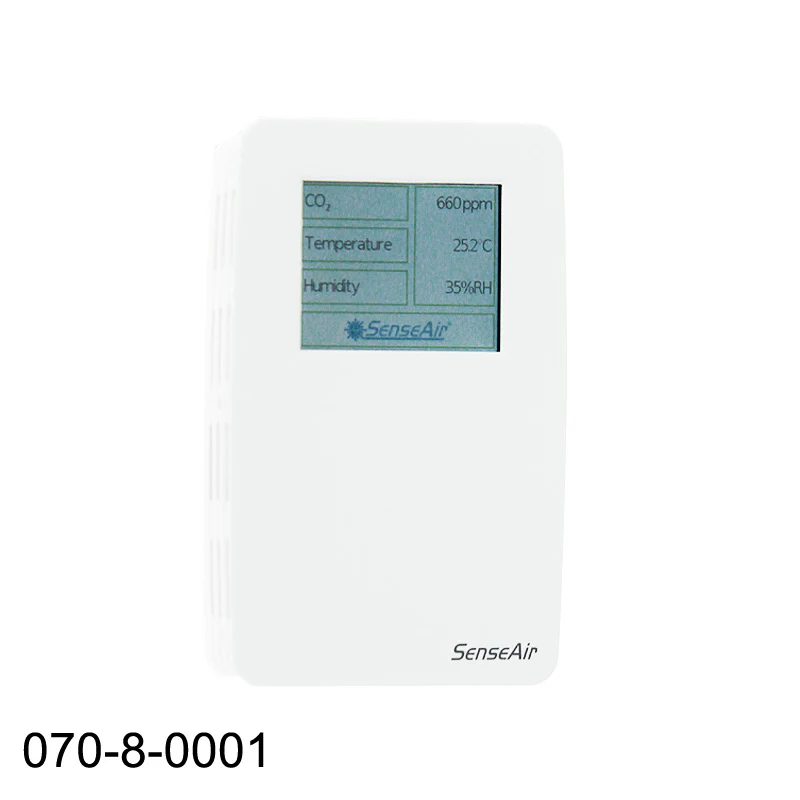

The 070-8-0001 tSense Touch Screen CO2 + RH/T Transmitter (formerly known as the SE-0034) and the 070-8-0002 tSense No Display CO2 + RH/T Transmitter (Formerly known as the SE-0035) is an attractive, wall-mounted carbon dioxide concentration, temperature, and relative humidity transmitter. It is available with (070-8-0001) or without (070-8-0002) an LCD color touch screen display.
Features:
- CO2, Temperature, and % Relative Humidity
- Easy Configuration via LCD Touch Screen
- Data Logging Capabilities
- All Industry-Standard Outputs
ABOUT CO2 STORAGE SAFETY CODES
This device will NOT meet requirements for CO2 monitoring in the NBIC, NFPA, or IFC regulations. Refer to our CO2 Safety Products page for devices that meet your needs.
Call us at (877) 678-4259 toll-free or email us to speak with our technical sales team about purchasing the correct device.
Specifications
- Gas Sensing Method: Non-dispersive Infrared
- Gases Measured: Carbon Dioxide, Temperature, and Humidity
- Gas Measurement Range: 0-2,000 ppm CO2, 0-50°C, ±5% RH
- Accuracy (CO2): ±30ppm ±3% of reading
- Dimensions: 125mm x 85mm x 22mm
- Dimensions (display): 49mm x 37mm
- Life expectancy: >15 years
- Operation Temperature: 0 - 50°C
- Sensor Life Expectancy: 15 years
- ABC (Automatic Background Calibration) is enabled but can be used programmed/disabled
Outputs
- OUT1 CO2 0-10VDC, 0-2000ppm
- OUT2 Temperature 0-10VDC, 0-50°C
- OUT3 Relative Humidity 0-10VDC, 0-100%RH
- Modbus over RS485
- Programmable Relay
Electrical Requirements
- 12VDC / 24 VAC/VDC
Warranty
- 5 years - See CO2Meter Terms and Conditions
Accessories
-
Contact Us for Cable: CBL-0022
Documents
Software
