LOX-O2 UV Flux 25% Oxygen Smart Sensor
The LOX-O2 UV Flux 25% Oxygen Sensor (formerly known as OX-0052) is designed to be used anywhere 0-25% oxygen levels are required. This makes it a valuable safety sensor anywhere inert gases are stored or used.
The sensor benefits from lower power requirements than electrochemical and galvanic sensors, while providing a longer lifetime due to the non-depleting sensing principle.
The LOX-O2 is ppO2 and temperature compensated, enabling linear operation over a wide range without the need for additional system components. It does not contain lead or any other hazardous materials and has negligible cross sensitivity to other gases.
Features
- Internally temperature compensated, no cross sensitivity
- Direct communication to UART, no signal conditioning circuitry required
- Contains no hazardous materials; RoHS & REACH compliant
- High Accuracy; Maintenance Free
Models
- LOX-O2 Sensor – for integration into high-volume OEM products or for hobbyists.
- CM-42950 – O2 25% Smart Sensor w/ MX Board (Same functionality as the development kit without USB cable or software).

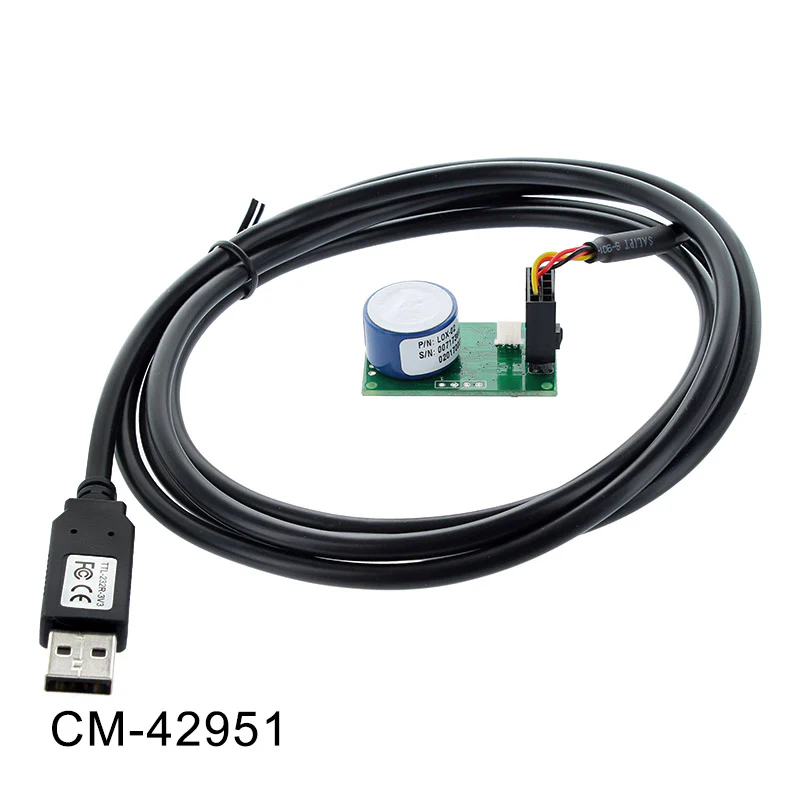

- CM-42951 – Oxygen Smart Sensor w/ Development Kit
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order the sensor on this page, then order the Devkit here.
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- Measuring Gas: Oxygen
- Measurement Range: 0.1 to 25% O2
- Sensing Method: Fluorescence quenching by oxygen
- Measurement Interval: 1 Sample/second
- Response Time: < 60 Seconds
- Warm-Up Time: < 60 Seconds at 72°F (22°C)
- Accuracy: Better than 2% at full scale
- Resolution: 0.10% / 0.1mbar
- Temperature Accuracy: +/- 2 degrees C
- Operating Temperature: -30°C to +60°C
- Barometric Pressure Range: 500 to 1200 mbar
- Lifetime: > 5 years
Electrical / Mechanical
- Voltage: 4.5 - 5.5 VDC
- Current: < 6mA (streaming @ 1 Sample/sec), < 17mA Peak
- Interface: UART or analog
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Case Studies
- Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
- Tube Cap Adapter - easily converts a wide range of gas sensors from diffusion applications to sampling. However, If you need a sampling sensor we recommend the LOX-02-F Flow Through Oxygen Sensor with tube caps instead.
- Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
- Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
- Micro Gas Sampling Pumps provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
